Aluminum Cladding Panel For The Light Trough

Type: Ceiling
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: Aluminum Cladding Panel For The Light Trough, aluminum cladding panels
Materials: aluminum alloy
Thickness: 1.5 ~ 3.0 mm
Width: ≤ 2000 mm
Length: ≤ 6000 mm
Color: RAL color or customized
Surface treatment: polyester powder coated, PVDF coated, thermal transfer printing, marble effect treatment
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity



SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

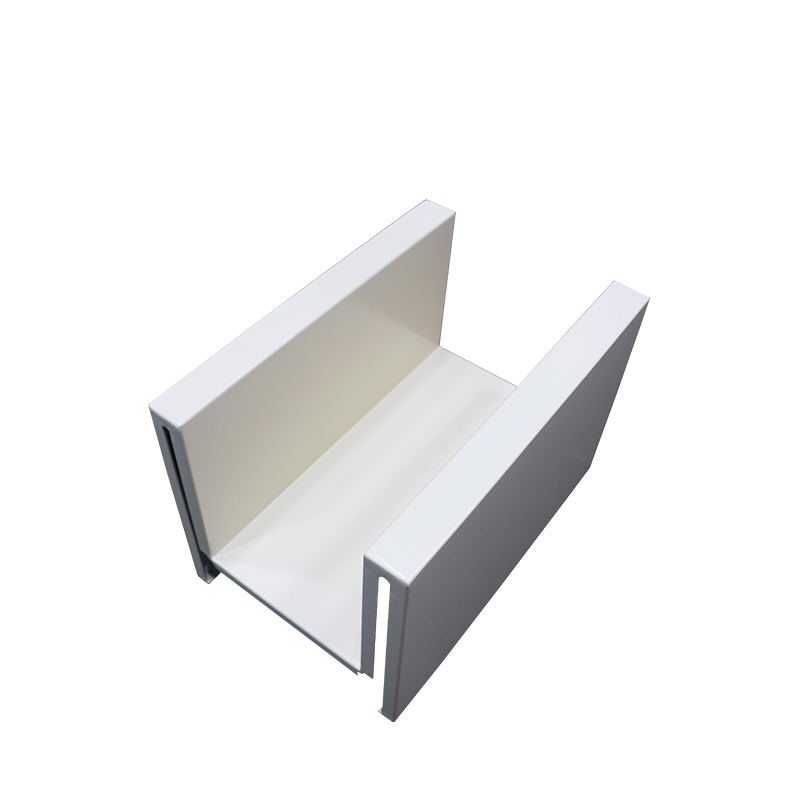

The aluminum alloy veneer is a special aluminum veneer for the installation of the aluminum veneer ceiling system. With the flexibility of the aluminum veneer structure, it can be processed into the required size according to the design site requirements. The back of the board is fixed with ribs to make the structure more stable.
The light-slot aluminum veneer gives the space a layered feel and forms a complete system that covers the other facilities above the ceiling and houses the fixtures.

We use high-precision processing equipment to ensure the flatness of the product in structure and can be perfectly connected with other parts. At the same time, the brand coating and spraying are used to ensure the surface effect and service life of the aluminum plate with the shape of the lamp slot.

Product Features:

  • The aluminum panels are environmental friendly and 100% recyclable
  • The aluminum panels are painted with bright colors and beautiful patterns;
  • The aluminum panels have the excellent thermal conductivity, conductive, anti-bacterial, fire and cleaning performance, etc.;
  • As manufactured by modular production in the factory, the aluminum panels can be installed easier;

Product Specification:

Item Name Aluminum Cladding Panel For The Light Trough
Materials A1100 H24, A3003 H24, A5052 H24, A5005 H24 or according to customers requirement
Thickness 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm
Fabricating Process cutting, bending, jointing, welding, polishing
Color RAL color or Customized
Surface
  1. fluorocarbon painting
  2. PE coating
  3. powder coating
  4. roller coating
Max Size 1600 mm * 1300 mm * 2400 mm ( L * W * H )
Certification CE, ISO 9001, ISO 14001, SGS
Coating Color Guarantee
  1. 15 years color guarantee ( fluorocarbon painting )
  2. 10 years color guarantee ( roller painting )
  3. 5 years color guarantee ( PE coating )
  4. 3 years color guarantee ( powder coating )


Installation Structure

aluminum-veneer-installation-structure
