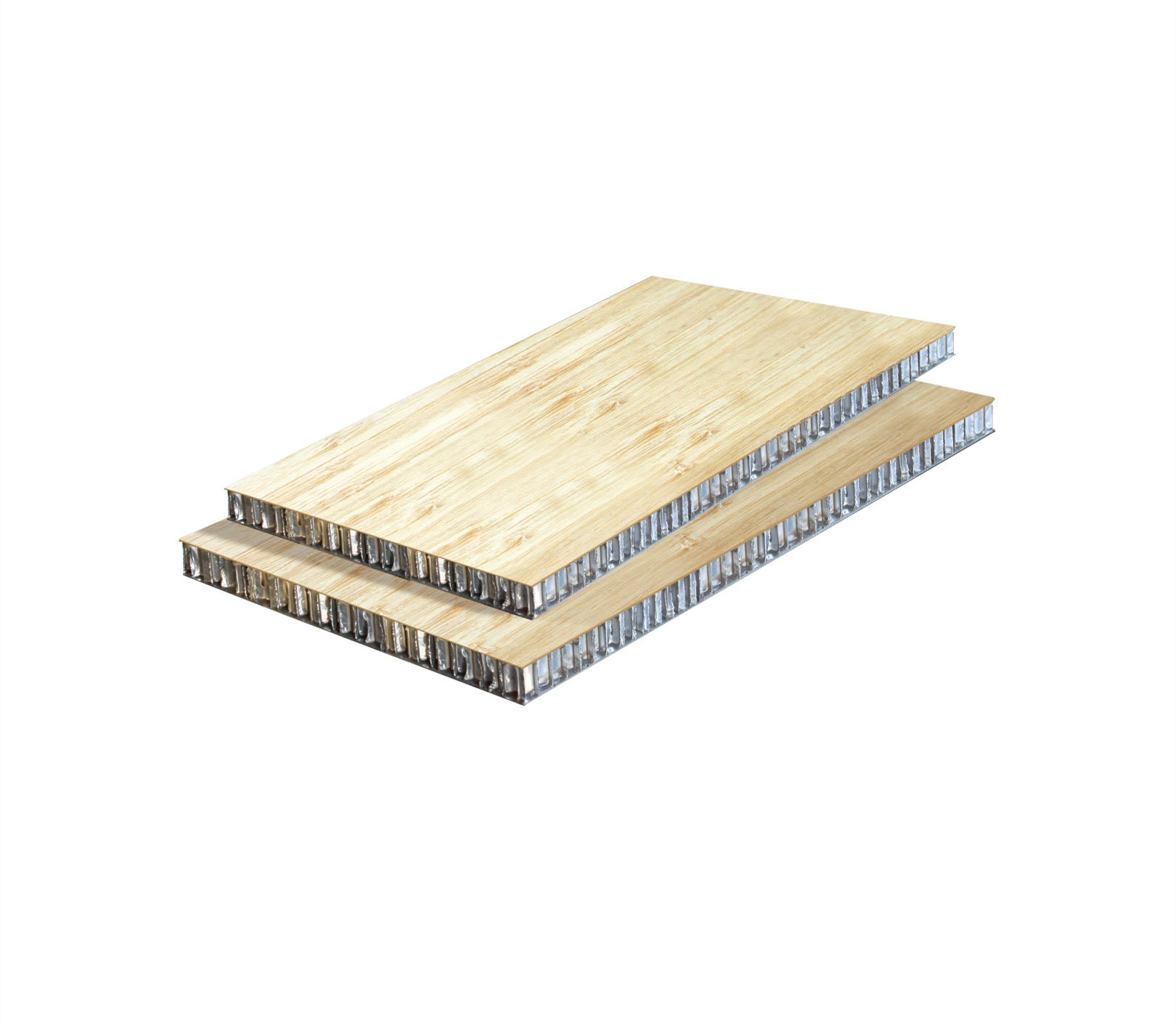

Bamboo Aluminum honeycomb panel

Type: Curtain Walls or Suspended Ceiling
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: Bamboo Aluminum honeycomb panel, aluminum composite panel
Materials: aluminum alloy
Thickness: 10 ~ 100 mm
Width: ≤ 2200 mm
Length: ≤ 6000 mm
Color: RAL color or customized
Surface treatment: Bamboo complex
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity



SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

Bamboo aluminum honeycomb panel is a new type of green environmental protection decoration material. The bamboo and aluminum honeycomb panels are composited with German advanced composite technology and a high-strength thermoplastic adhesive system.
Today, bamboo green honeycomb panels are the main products of modern decorative materials with their unique characteristics, excellent intrinsic quality and pleasing natural texture.

Advantages of aluminum bamboo honeycomb panel

  1. Energy saving, green material: good thermal and sound insulation & sound insulation, fire resistance;
  2. High windload resistance: high strength & rigidness and stable structure of honeycomb core;
  3. Easy installation & low labor cost: light weight;
  4. Good decoration: excellent flatness & wide color selection.

Product Specification

Specification overall thickness: 10 ~ 100 mm
width ≤ 2200 mm
length ≤ 6000 mm
Face Sheet Materials: high grade aluminum alloy (1100、3003、5257、6061 )
Thickness ≥ 1.0 mm ( curtain wall standard ) or ≥ 0.7 mm ( non-standard )
Core Materials: high grade anti-corrosive aluminum honeycomb core
Aluminum foils’ thickness: 6 mm
Bottom Sheet Material: high grade aluminum alloy ( 1100、3003、5257、6061 )
thickness ≥ 0.7 mm ( standard ) or ≥ 0.5 mm ( non-standard )
Binder Two-component high-temperature curing polyurethane adhesive of fuller/ hot melt adhesive membrane.
Treatment Bamboo complex
Color RAL color or customized
Density 5.0 ~ 7.5 KG/ m2
Certificated CE, SGS, ISO 9001:2000

Product Installation Structure

aluminum-honeycomb-panel-installation-structure-1

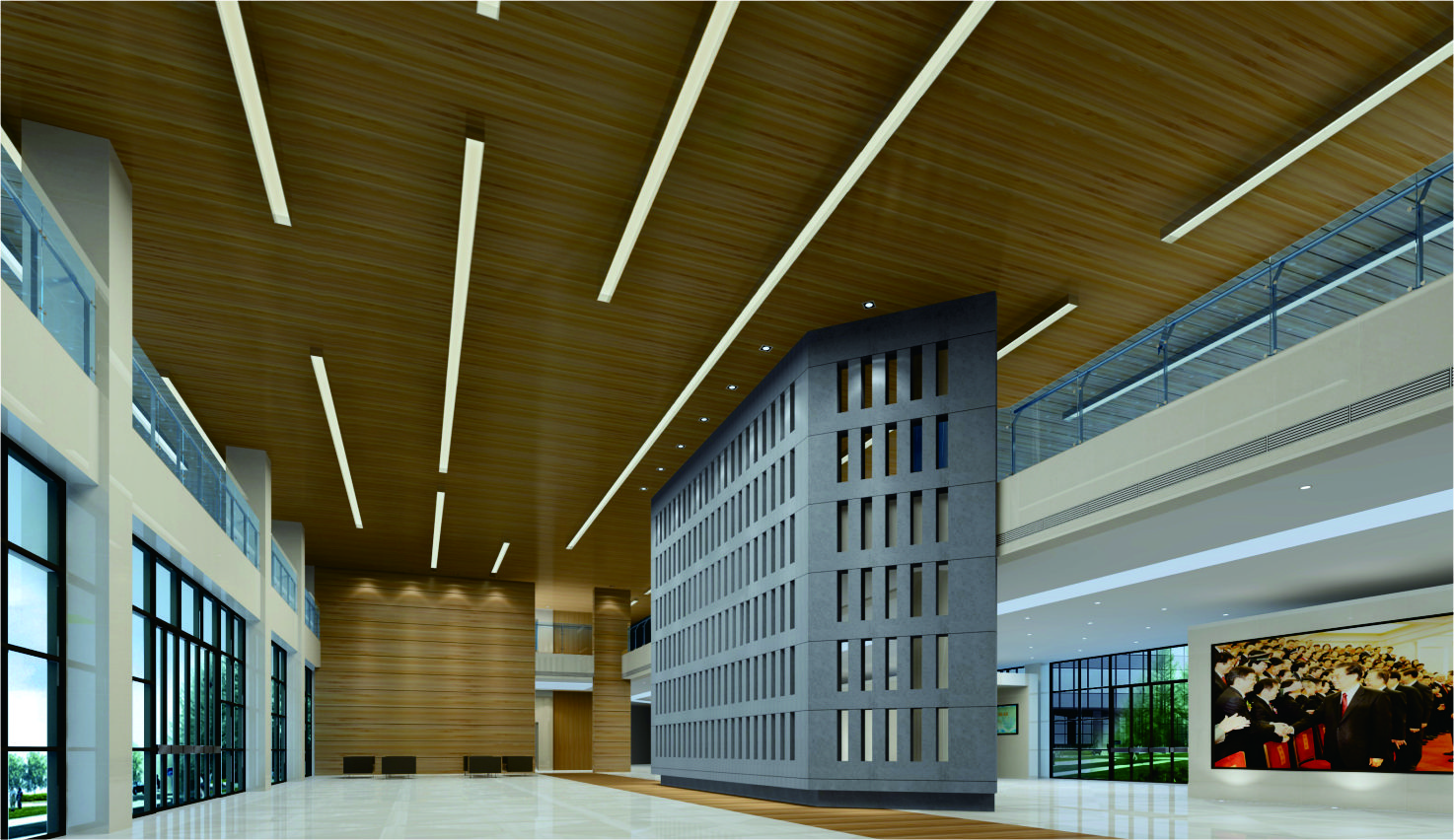

Bamboo Aluminum Honeycomb Applications:

1
