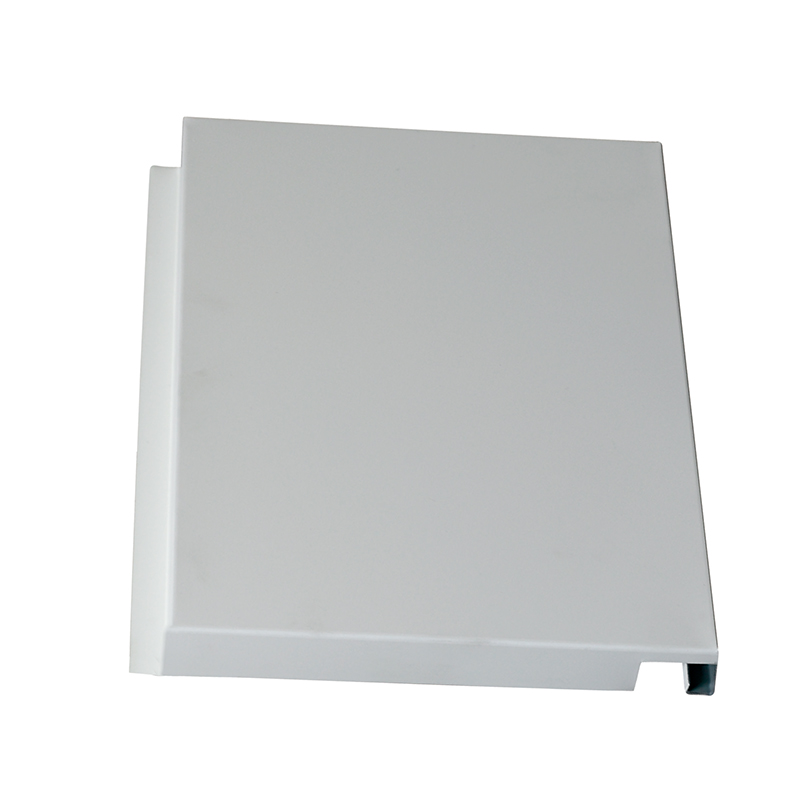

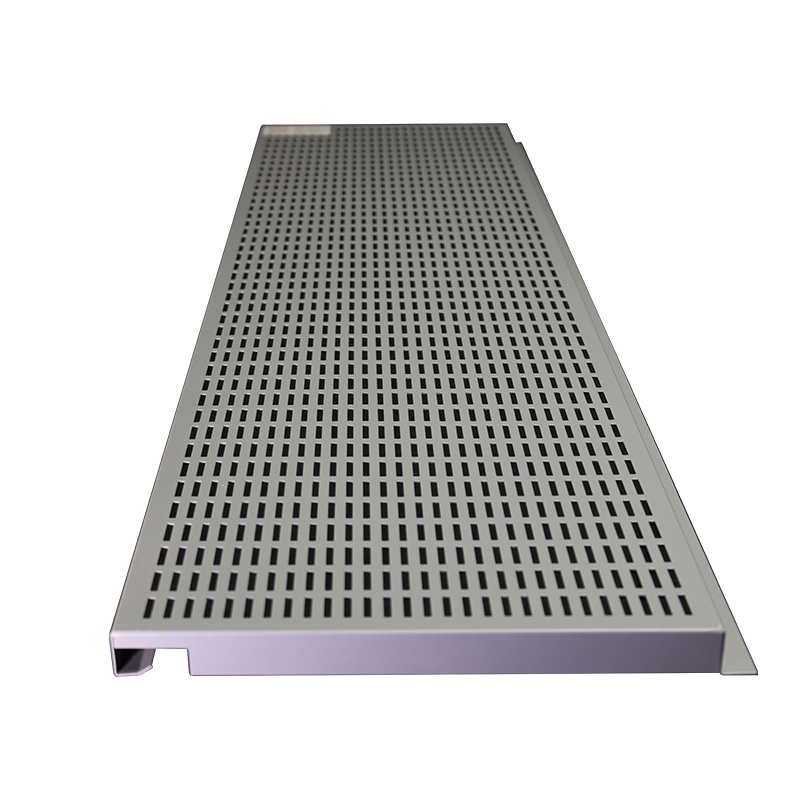

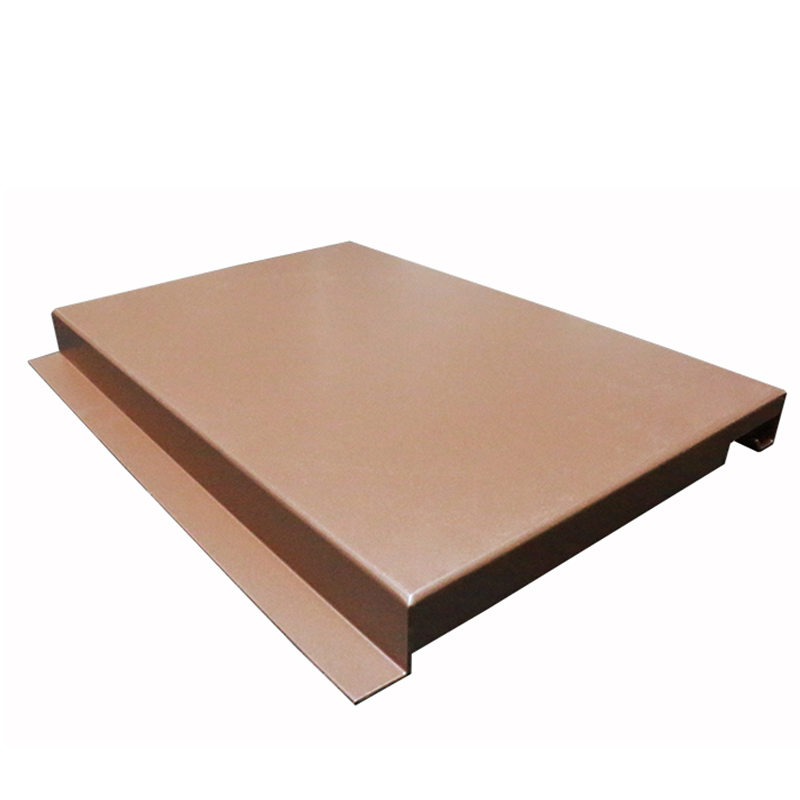

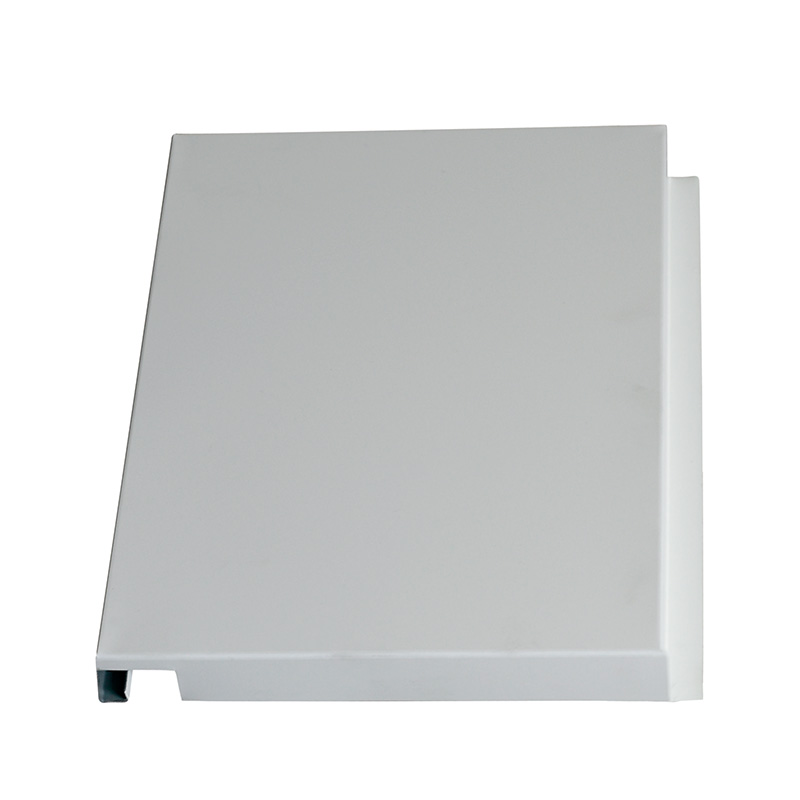

Hook On Aluminum Cladding Panel

Type: Ceiling
Place of Origin: Guangdong, China
Brand Name: Bahe
Key Words: Hook On Aluminum Cladding Panel, aluminum cladding panels
Materials: aluminum alloy
Thickness: 1.5 ~ 3.0 mm
Width: ≤ 2000 mm
Length: ≤ 6000 mm
Color: RAL color or customized
Surface treatment: polyester powder coated, PVDF coated, thermal transfer printing, marble effect treatment
Certification: CE, SGS, ISO 9001:2000
M.O.Q 1 square meter
Price: FOB price
Free Sample: Yes
Guarantee: 10 Years
Package: plastic film, bubble inside, cartoon outside, wooden support
Delivery: 15~20 working days, or depend on quantity



SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

Hook On Aluminum Cladding Panel is flat, generally a one-way parallel keel hook-and-hook structure. The splicing between the board and the board is sequentially folded together by the keel. The unique hook design of the board edge can control the board well. The activity between the plate and the plate ensures that the gap between the plate and the plate is tight and flat, the seams are fine, the ridge lines are distinct, and different widths can be realized in various combinations.
Hook On Aluminum Cladding Panel product system is regular, generous, compact, and has a wide viewing angle and a strong sense of modernity. It has the advantages of flame retardant, anti-corrosion and moisture proof, and it is convenient to assemble and disassemble, which is convenient for construction and maintenance.

Product Features:

  • The aluminum panels are environmental friendly and 100% recyclable
  • The aluminum panels are painted with bright colors and beautiful patterns;
  • The aluminum panels have the excellent thermal conductivity, conductive, anti-bacterial, fire and cleaning performance, etc.;
  • As manufactured by modular production in the factory, the aluminum panels can be installed easier;

Product Specification:

Item Name Hook On Aluminum Cladding Panel
Materials A1100 H24, A3003 H24, A5052 H24, A5005 H24 or according to customers requirement
Thickness 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm
Fabricating Process cutting, bending, jointing, welding, polishing
Color RAL color or Customized
Surface
  1. fluorocarbon painting
  2. PE coating
  3. powder coating
  4. roller coating
Max Size 1600 mm * 1300 mm * 2400 mm ( L * W * H )
Certification CE, ISO 9001, ISO 14001, SGS
Coating Color Guarantee
  1. 15 years color guarantee ( fluorocarbon painting )
  2. 10 years color guarantee ( roller painting )
  3. 5 years color guarantee ( PE coating )
  4. 3 years color guarantee ( powder coating )


Installation Structure

安装结构_副本

Project Case

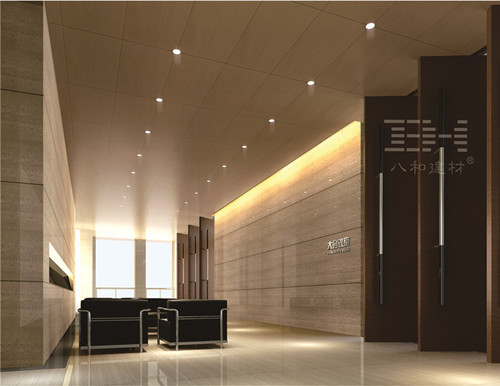

Hook On Aluminum Cladding Panel ceilings are widely used in high-end office buildings, hospitals, airports, clubs, banks, shopping malls, exhibition halls, etc.

案例图_副本_副本

20160727112552628_副本
