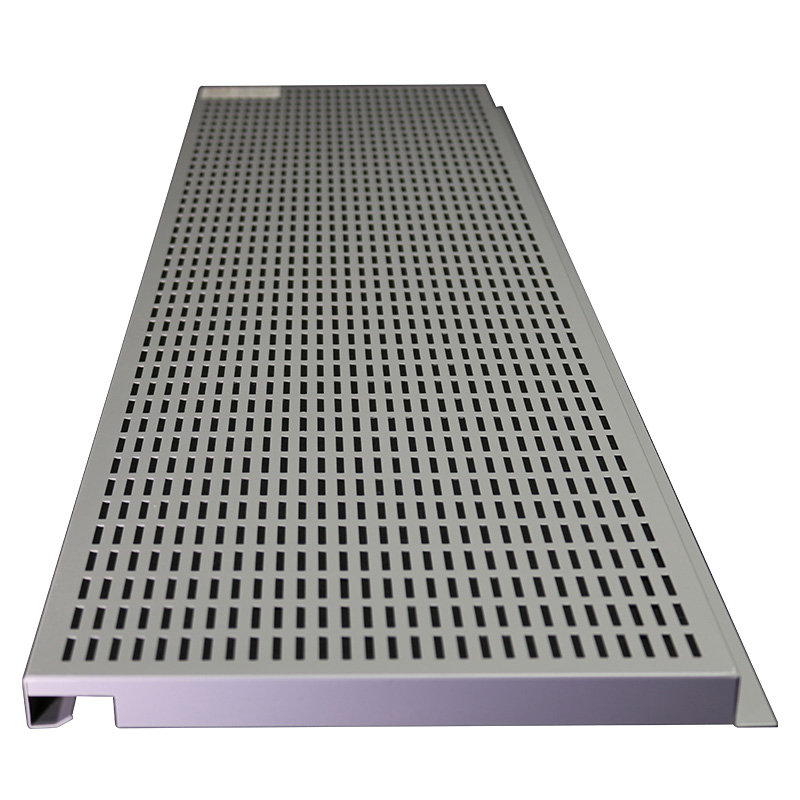

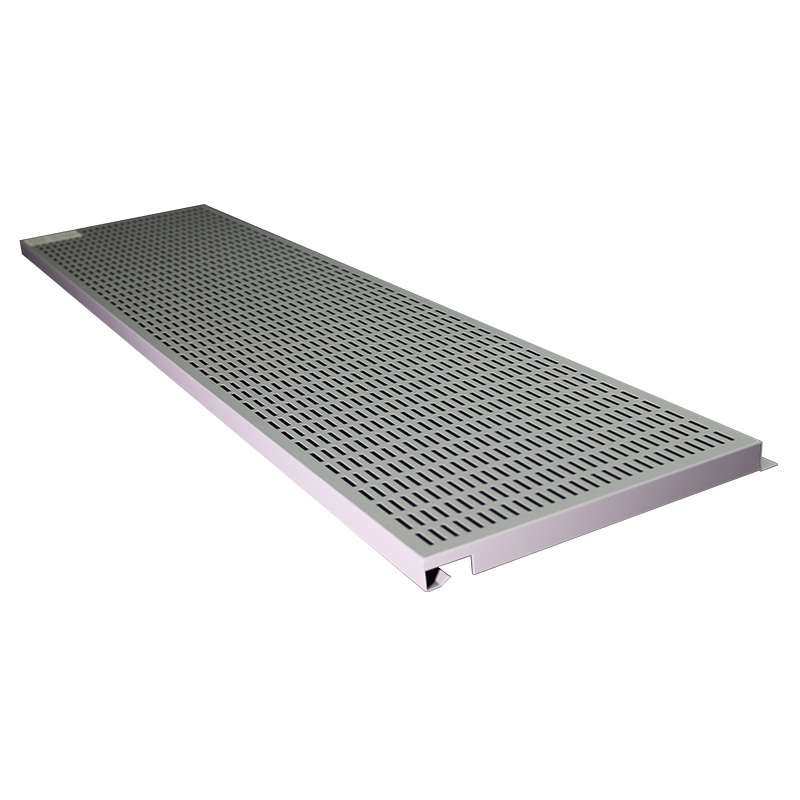

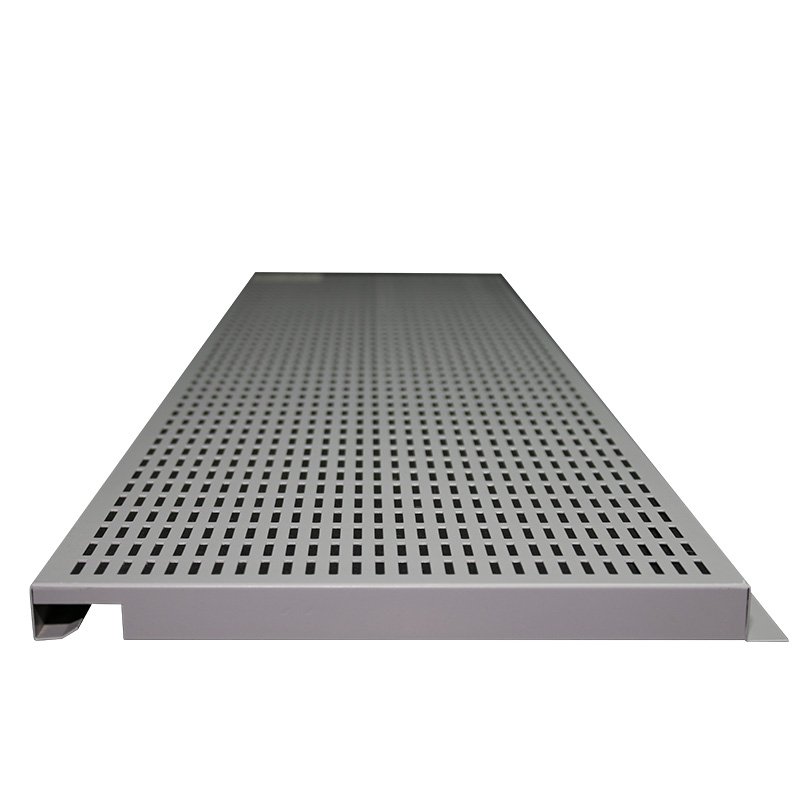

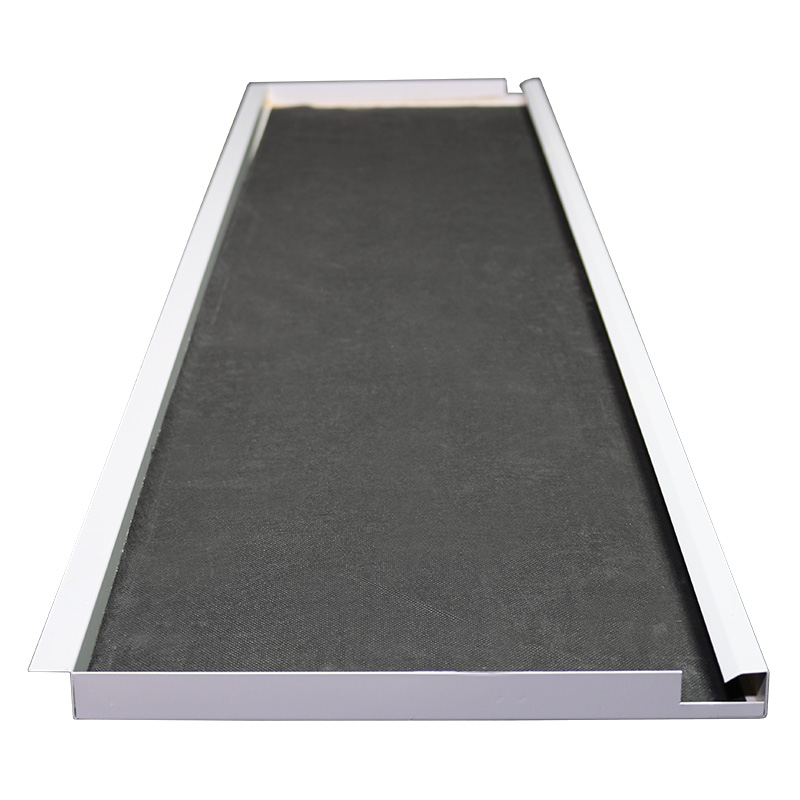

Perforated Hook On Aluminum Cladding Panel
- PRODUCT DETAIL
Product Description
Hook On Aluminum Cladding Panel is flat, generally a one-way parallel keel hook-and-hook structure. The splicing between the board and the board is sequentially folded together by the keel. The unique hook design of the board edge can control the board well. The activity between the plate and the plate ensures that the gap between the plate and the plate is tight and flat, the seams are fine, the ridge lines are distinct, and different widths can be realized in various combinations.
Hook On Aluminum Cladding Panel product system is regular, generous, compact, and has a wide viewing angle and a strong sense of modernity. It has the advantages of flame retardant, anti-corrosion and moisture proof, and it is convenient to assemble and disassemble, which is convenient for construction and maintenance.
Product Features:
- The aluminum panels are environmental friendly and 100% recyclable
- The aluminum panels are painted with bright colors and beautiful patterns;
- The aluminum panels have the excellent thermal conductivity, conductive, anti-bacterial, fire and cleaning performance, etc.;
- As manufactured by modular production in the factory, the aluminum panels can be installed easier;
Product Specification:
| Item Name | Perforated Hook On Aluminum Cladding Panel |
| Materials | A1100 H24, A3003 H24, A5052 H24, A5005 H24 or according to customers requirement |
| Thickness | 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm |
| Fabricating Process | cutting, bending, jointing, welding, polishing |
| Color | RAL color or Customized |
| Surface |
|
| Max Size | 1600 mm * 1300 mm * 2400 mm ( L * W * H ) |
| Certification | CE, ISO 9001, ISO 14001, SGS |
| Coating Color Guarantee |
|

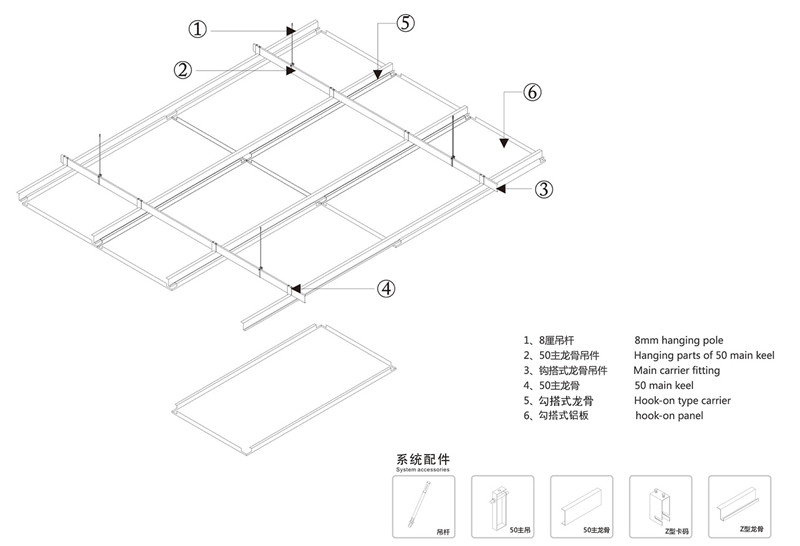

Installation Structure

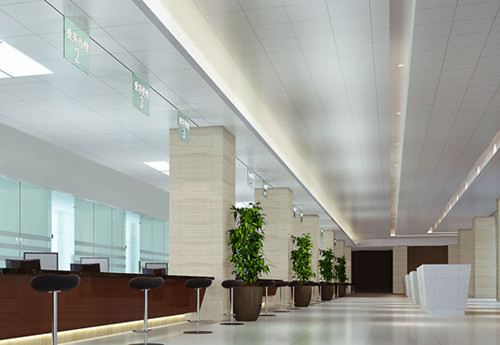

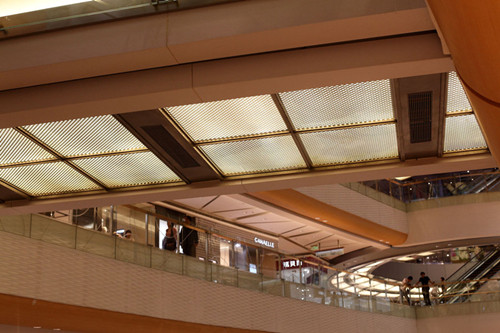

Project Case
Hook On Aluminum Cladding Panel ceilings are widely used in high-end office buildings, hospitals, airports, clubs, banks, shopping malls, exhibition halls, etc.
