Perforated Square-shaped Aluminum Ceiling
- PRODUCT DETAIL
Product Description:
Perforated Square-shaped Aluminum Ceiling is a commonly used ceiling product for high-rise office buildings and hospital ceilings. It has a flat surface and distinct ridge lines, and has a neat and elegant appearance.
The commonly used hole shape of Perforated Square-shaped Aluminum Ceiling is a circular hole with a diameter of 1.0, 1.8, 2.3mm. The arrangement of the holes can be oblique, straight and more. The white and black sound absorbing materials can be selected on the back. , has a certain sound absorption effect.
Product Feature:
- flame retardant, damp-proof, environmental protection
- dry construction method with easy & speedy installation
- easy maintenance & repair
- superb acoustic absorption with perforated tiles
Product Specification
| SPECIFICATION | THICKNESS | HEIGHT |
| 300*300 mm | 0.4 – 1.0 mm | 19 mm ( short edge )
25 mm ( high edge ) |
| 300*450 mm | ||
| 300*600 mm | ||
| 300*1200 mm | ||
| 400*400 mm | 0.5 – 1.2 mm | |
| 500*500 mm | ||
| 600*600 mm | ||
| 600*1200 mm | ||
| base materials | aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirements. Besides, galvanized iron and stainless steel material is also available. | |
| surface treatment | powder coated ( ordinary powder, Polyester powder ), paint coated, film coated. | |
| type of surface | plan plate or perforated plate is selected according to the actual requirements. | |
Product & Installation Structure

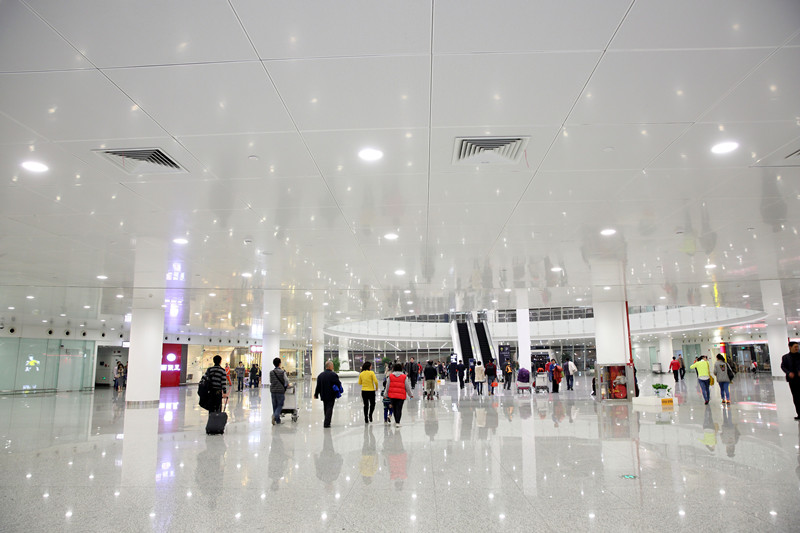

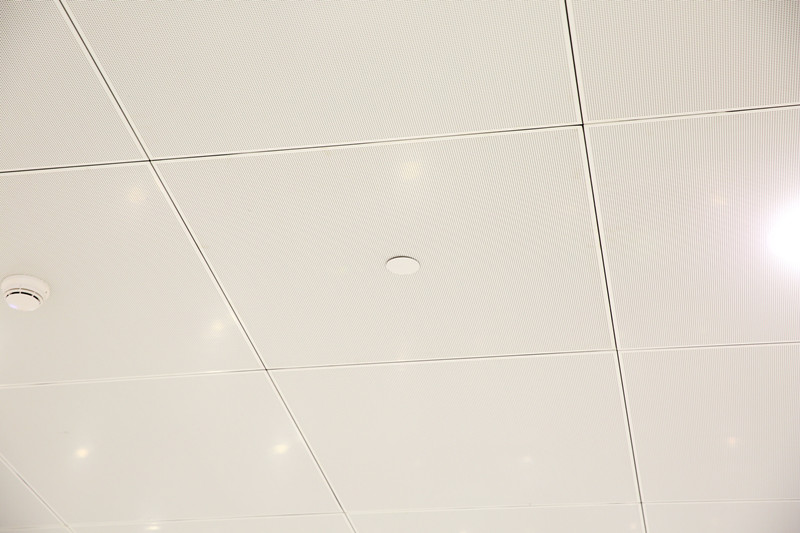

Project Case
