U-Shaped Aluminum Baffle for Corridor

Place of Origin: China Mainland
Brand Name: BAHE Building Materials
Certification: ISO 9001, ISO 14001, CE, SGS Test, GB/T 28001-001
Price: Negotiation
Packaging Details: Export carton
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 280,000 meters/ month
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product Description

U-shaped baffle ceiling (U aluminum baffle ceiling, U-baffle ceiling) is kind of visible curtain type ceiling. The visual angle of the house can be adjusted, and the pipes and other facilities of the building can be hidden. Additionally, it can make the light soft in the room at the same time. This kind of ceiling won’t affect the sound-absorbing and isolating effect of the house, but increase the effect of exhaust and heat elimination, and won’t influence the installation of fire facilities and air conditioner system.



Product Specification

specification thickness distance
30W * 50H/ 70H/ 100H/ 120H 0.6 – 0.8 mm 100 mm
40W * 40H/ 70H/ 90H
50W * 40H/ 60H/ 90H/ 110H
20W * 100H 1.0 mm 100 mm
25W * 50H 0.8/ 1.0/ 2.0 mm
25W * 75H 1.0 mm
25W * 100H 1.0/ 1.1/ 1.2/ 1.8/ 2.0 mm
25W * 150H 1.5 mm
30W * 100H 1.0 mm
50W * 100H 1.0/ 1.5 mm
50W * 150H 1.5 mm
base material aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirements.
surface treatment powder coated ( ordinary powder, PE powder ), paint coated
type of surface plain plate or perforated plate is selected according to the actual requirements.



U-shaped aluminum baffle structure

u-shaped-baffle-ceiling-structure



U-shaped Aluminum Baffle Ceiling Features:

  • with invisible structure and unique appearance;
  • with strong functional and decorative effects, it has the advantages of stability, easy to install and repair;
  • corrosion prevention, moisture proof, sound absorbing and inflaming retarding.

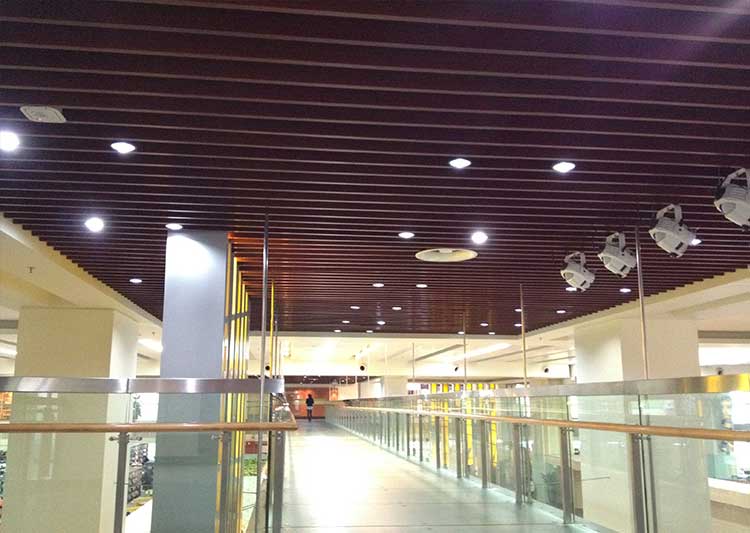

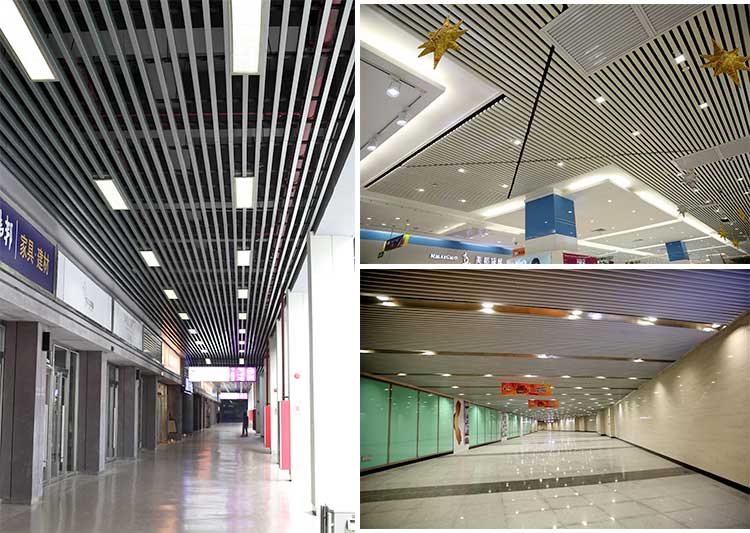

Application of U-aluminum baffle ceiling systems
u-shaped-aluminum-baffle-ceiling-system
aluminum-strip-baffle-ceiling-system
